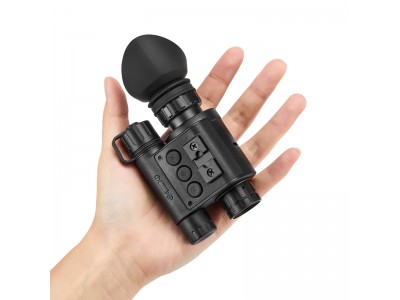

東帝夜視DAKINGNV-DG1920-1X頭戴數碼夜視儀可拍照錄像

產品性能Product performance：

新一代高清低照度圖像傳感器 The new generation of high-definition low light image sensors

頭戴時方向感應自動待機Automatic standby with directional sensing when wearing a headset

日夜兩用全天候觀測Day and night dual-use all-weather observation

一鍵開啟錄像或拍照One click to start recording or taking photos

WIFI連接手機實現同步觀看和遠程遙控

WIFI connection to mobile phone for synchronized viewing and remote control

圖像亮度的調節 Adjusting image brightness

超寬帶多層增透膜Ultra wideband multilayer anti reflective film

自帶64G內存 Comes with 64GB of built-in memory

多種電源方式可選擇 Multiple power supply modes to choose from

產品參數

Product parameters：

型號 model

DG1920-1X

內置顯示屏尺寸Built in display screen size

0.38Inch

傳感器分辨率 Sensor resolution

1920x1080

放大倍率 Magnification rate

1X

物鏡直徑 Objective diameter

32mm

視場角度（度，°）（D、H、V分別是對角、水平、垂直三個方向Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=23.4°H=20.4°V=11.5°

焦距（mm） focal length

16

視度調節范圍（屈光度）Visual adjustment range

+5°/-5°

錄像質量Recording quality

1920x1080

照片質量Photo quality

1920x1080

觀察模式

Observation mode

晝/夜兩種模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜間模式擋位Night mode gear

1-4擋（N1/N2/N3/N4）

屏幕亮度調節Screen brightness adjustment

有（1-3擋）yes

紅外燈輔助Infrared light assist

有yes

紅外燈波長 LED wave length

850nm

電池類型 Battery type

1X18650鋰電池 1X18650 lithium battery

電池待機時長

Battery standby time

5小時以上（紅外關閉）2.5小時以上（紅外開啟N4）Over 5 hours (infrared off) Over 2.5 hours (infrared on N4)

其他電源方式

Other power supply methods

支持（如充電寶、直流電、車載電源等）

Support (such as power bank, DC, car power supply, etc.)

低電指示Low battery indication

有yes

內置存儲Built in storage

64G

USB端口 USB port

有yes

WiFi連接手機APP

WiFi connection to mobile app

支持iOS & Android (圖像視頻傳輸/遠程遙控)可一對多Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI連接APP有效距離

Effective distance of WIFI connection to APP

20米內

Within 20 meters

聲音記錄 Sound recording

有yes

日期記錄 Date Record

有（連接WIFI后實時同步設置）Yes (real-time synchronization settings after connecting to WIFI)

上翻待機功能 Flip up standby function

有yes

語言選擇 Language selection

中文、英文 Chinese, English

防塵防水等級 Protection grade

生活防水 Domestic waterproofing

產品尺寸 Product size

93 X 64 X 47mm

外觀材質 Appearance material

鋁合金 aluminium alloy

重量 weight

160 g
