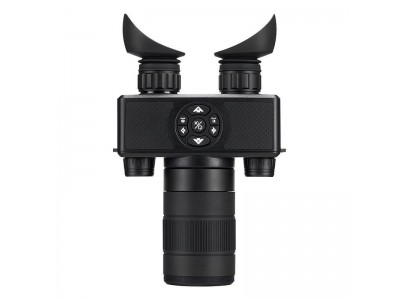

東帝夜視DAKINGNV-DG1920-5X雙目單筒紅外數碼夜視儀

產品性能

Product performance：

高清低照度圖像傳感器High definition low light image sensor

日夜兩用全天候觀測Day and night dual-use all-weather observation

雙紅外輔助照明系統Dual infrared auxiliary lighting system

一鍵開啟錄像或拍照功能One click activation of recording or photography function

WIFI連接手機實現同步觀看和遠程遙控

WIFI connection to mobile phone for synchronized viewing and remote control

流暢的數碼倍率變焦（放大或縮?。㏒mooth digital zoom (zoom in or out)

戶外GPS定位 Outdoor GPS positioning

電子羅盤/俯仰角/氣壓計 Electronic compass/pitch angle/barometer

圖像亮度的調節Adjusting image brightness

超寬帶多層增透膜Ultra wideband multilayer anti reflective film

支持4G-128G范圍內的micro SD卡 Supports micro SD cards in the 4G-128G range

內置鋰電池，長時間待機 Built in lithium battery for long-term standby

產品參數

Product parameters：

型號model

DG1920-5X

傳感器分辨率Sensor resolution

1920x1080

放大倍率Magnification rate

5-30連續變倍/5-30 continuous doubling

視場角度（度，°）（D、H、V分別是對角、水平、垂直三個方向

Field of view angle (degrees, degrees) (D, H, V are diagonal, horizontal, and vertical directions respectively)

D=7.36 H=5.9 V=4.4

焦距（mm）Focal length (mm)

50

視度調節范圍（屈光度）Visual adjustment range

+5°/-5°

焦距focal length

50mm

錄像質量 Recording quality

1920x1080

照片質量 Photo quality

1920x1080

觀察模式

Observation mode

晝/夜兩種模式（彩色/黑白）

Two modes of day/night (color/black and white)

夜間模式擋位Night mode gear

1-4擋（N1/N2/N3/N4）

屏幕亮度調節Screen brightness adjustment

有（1-3擋）There are (1-3 gears)

紅外輔助距離

Infrared assisted distance

1-800米（根據目標及環境不同有所差異）

1-800 meters (varies depending on target and environment)

電池待機時長Battery standby time

8-12小時/8-12 hours

內置鋰電池Built in lithium battery

支持support

其他電源方式

Other power supply methods

支持（如充電寶、直流電、車載電源等）

Support (such as power bank, DC, car power supply, etc.)

低電指示Low battery indication

有yes

TF內存卡端口TF memory card port

有（支持4G-128G）

USB端口/USB port

有yes

WiFi連接手機APP

WiFi connection to mobile app

支持iOS & Android (圖像視頻傳輸/遠程遙控)可一對多

Supports iOS&Android (image and video transmission/remote control) for one to many

WIFI連接APP有效距離

Effective distance of WIFI connection to APP

20米內

Within 20 meters

GPS

有yes

聲音記錄Sound recording

有yes

日期記錄Date Record

有yes

語言選擇Language selection

中文、英文Chinese, English

防塵防水等級Protection grade

生活防水Domestic waterproofing

產品尺寸Product size

180x128x60 mm

重量weight

703 g
